With mullions
Side hinge
Holds the rollers in place and protects against external pressure
Cable fall protection
Ensures that the curtain is stopped in the event of a cable break
Spring loaded fall arrester
Ensures that the curtain stops in the event of spring breakage

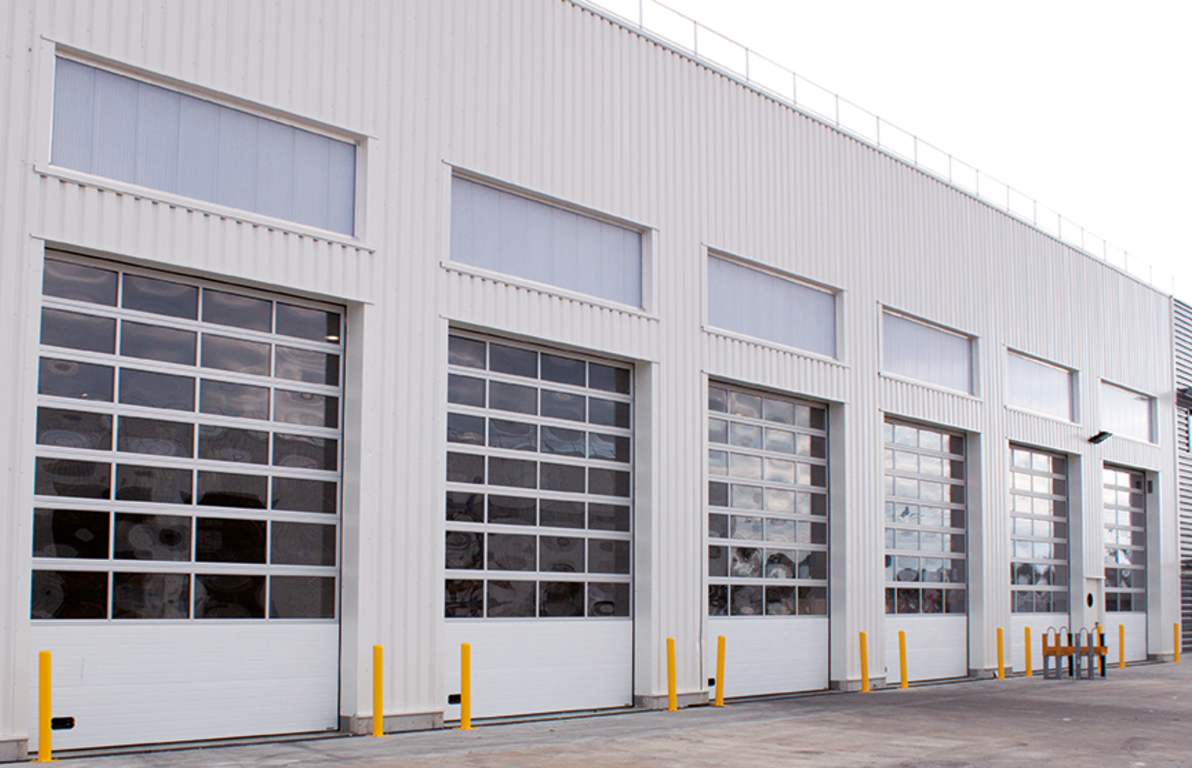

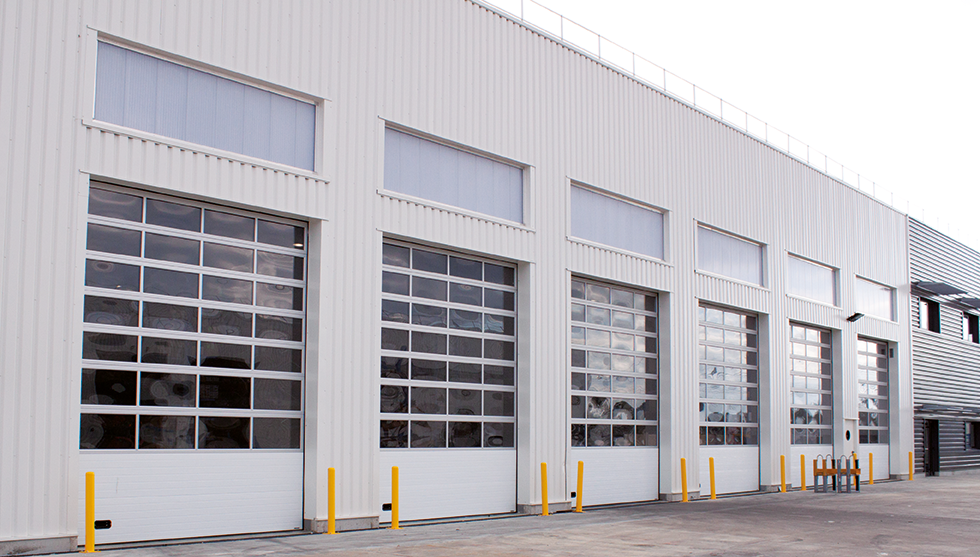

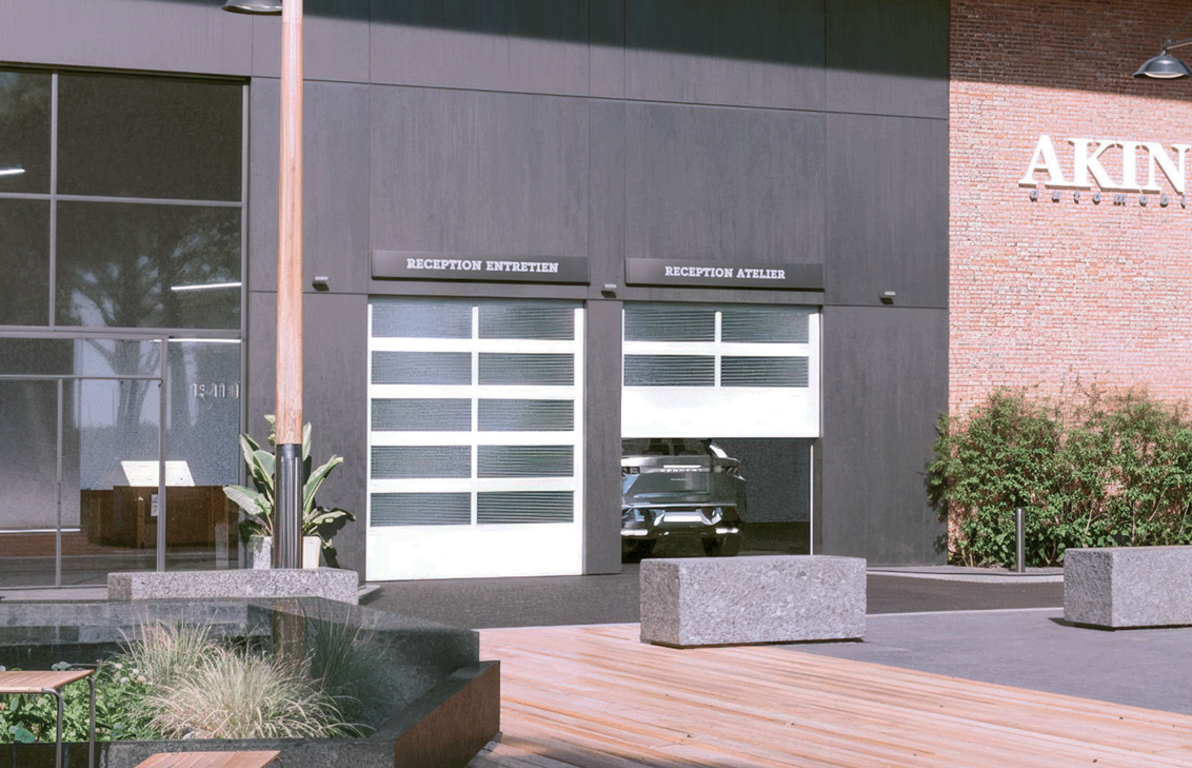

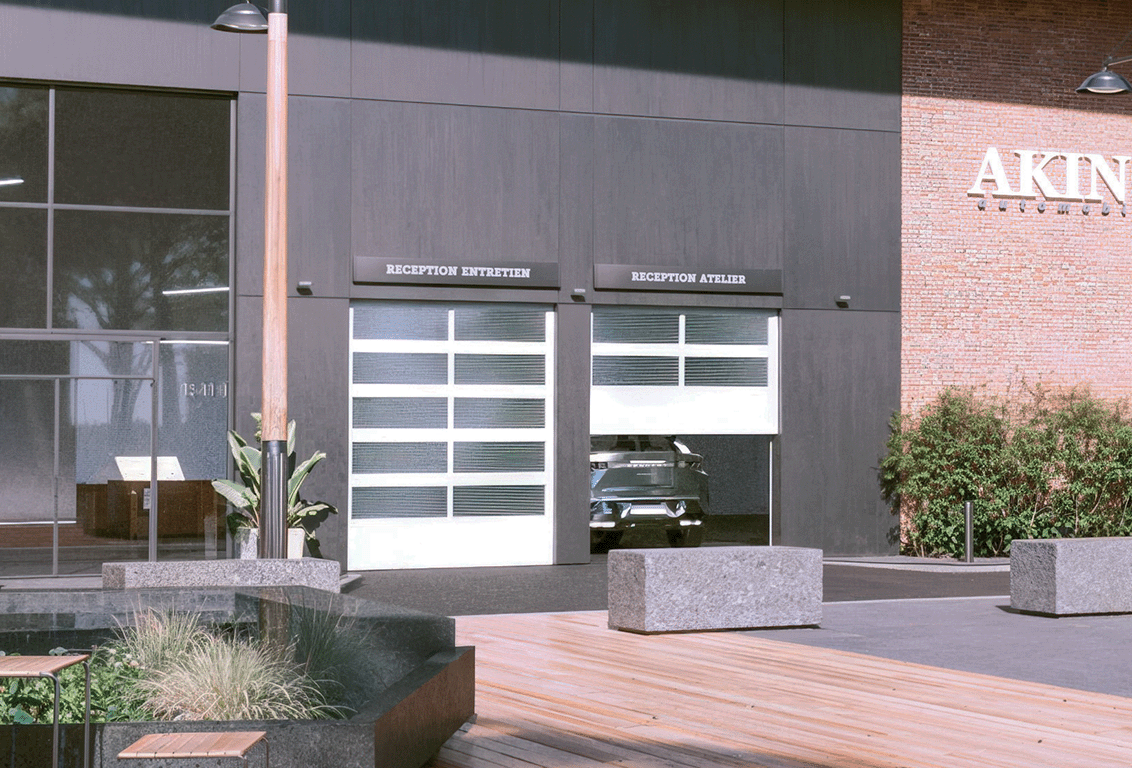

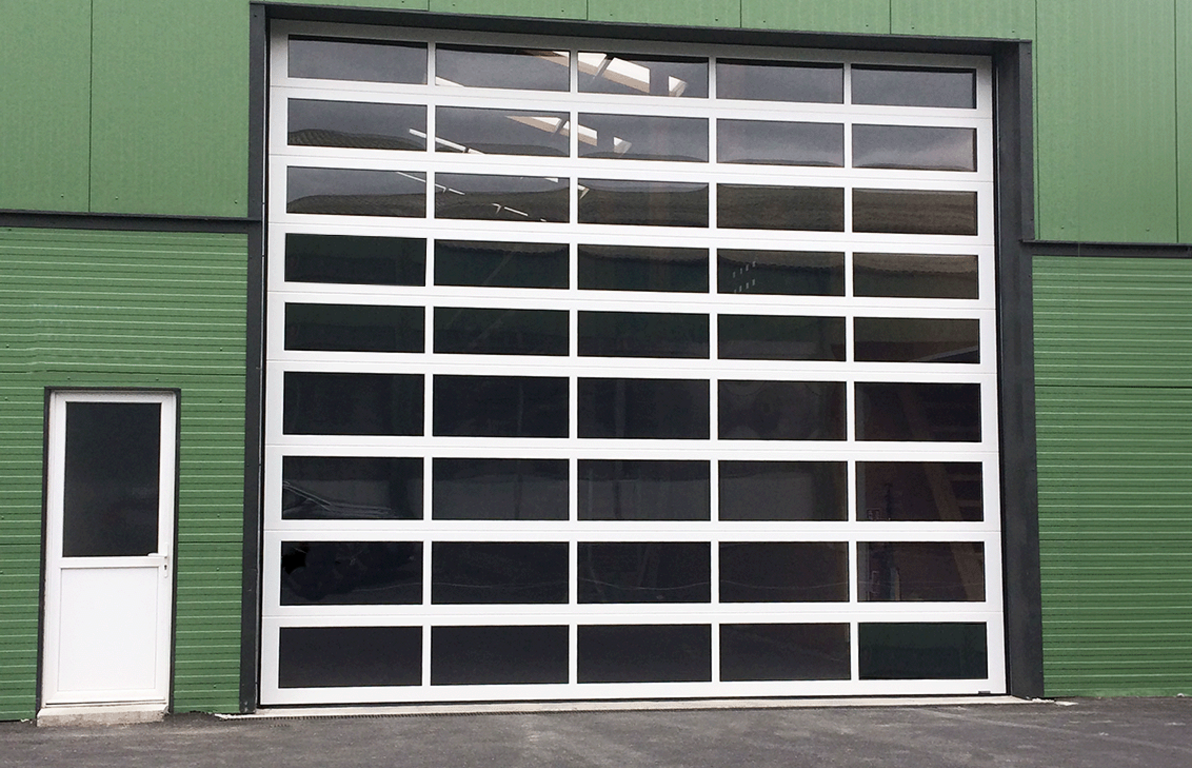

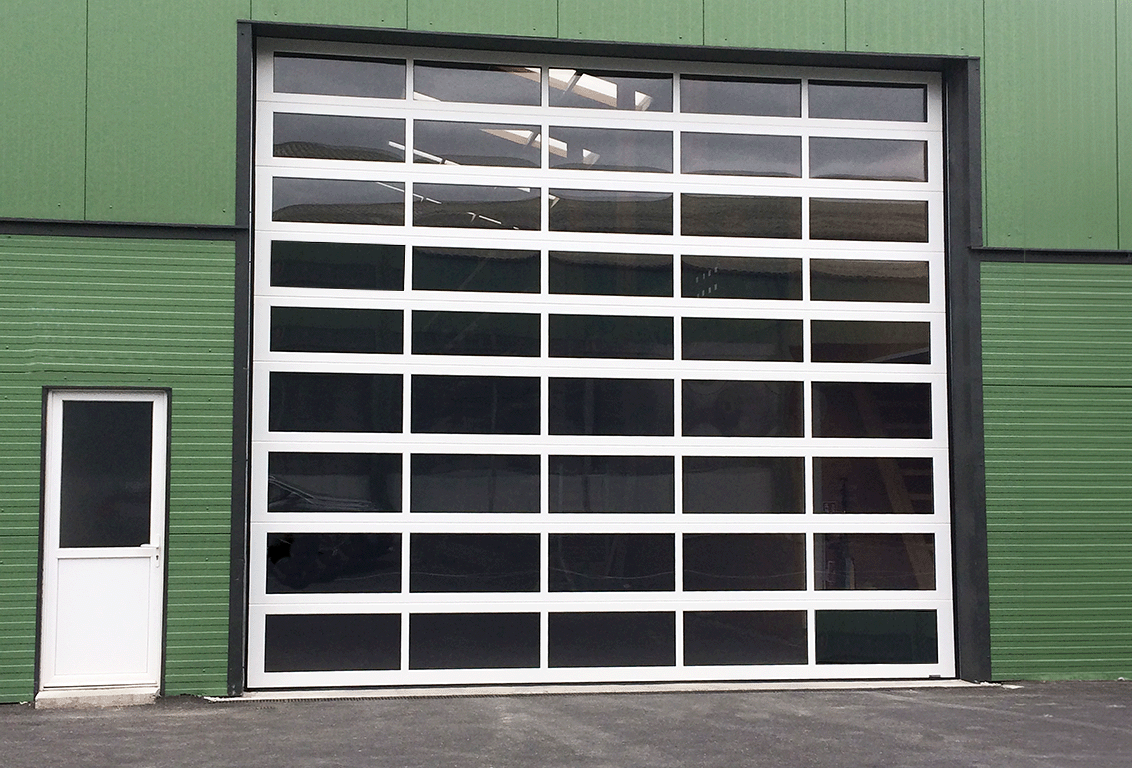

Element-R With mullions Industrial sectional doors
The Element-R glazed panels Plain sectional door offers excellent light transmission and high impact resistance. Several smooth and glazed panel layouts are available.
Line Sectional doors with glazed panels
Model R-Element
Material Steel
Type semi-open work, open work
Warranty 2 years
Target warehouse, industrial building, car dealership, community, handicraft, individual housing
Aspect With mullions
Finish Smooth, textured, Wood-grained
Wicket gate Without
Number of cycles per day 50
Wind class Class 4 up to 6000 mm width, Class 5 on request
Standards and certifications NF EN 13241+A2
Operating mode Press and hold, mixed, pulse, automatic
Options lock, Metal grilles for ventilation, portholes with rounded corners, portholes square corners
Portholes Without
Colors
See full color chart
Min-max width 1500-6000
Min-max height 1560-5500
French production
Guaranteed for up to 25 years
Superior quality
Installation by a qualified professional
